Carports & Pergolas

✅ Cantilever Carports & Pergolas
✅ 7-Year Frame Warranty
✅ Extra-Long Steel Connectors
✅ Extra-Long Steel Bases
✅ Wider Strips for Extra Strength
✅ Solid Polycarbonate Sheets
✅ Flexible Position of Posts
✅ Low Maintenance
✅ DIY-Friendly Installation
✅ All-Weather Protection

Check More Detailed Information

Carports & Pergolas

Cantilever Carport & Pergola Kits

Our cantilever carports and pergolas at Carports and Outdoors are designed for modern, space-efficient coverage, offering both style and durability. Built with extra-long steel connectors and steel bases, they provide a strong and stable foundation for long-term performance. Featuring wider strips for extra strength, these structures ensure enhanced resistance to heavy loads and harsh weather conditions. The solid polycarbonate sheets offer superior UV and weather protection, keeping your vehicle or outdoor space shielded from the elements. With a 7-year frame warranty, you can trust in long-lasting quality and reliability. Additionally, our carports and pergolas are rust and corrosion-resistant, making them perfect for Australian climates. Designed for low maintenance and easy DIY installation, they come with clear instructions for a hassle-free setup. Whether you need protection from sun, rain, or wind, our high-quality structures deliver the ultimate all-weather solution.

Carports & Pergolas Information

This page will provide you comprehensive information about our

L Shape Carports, Pergolas & custom size carports.

A PDF instruction guide & a video link will be provided for a smooth installation experience.


Posts Installation

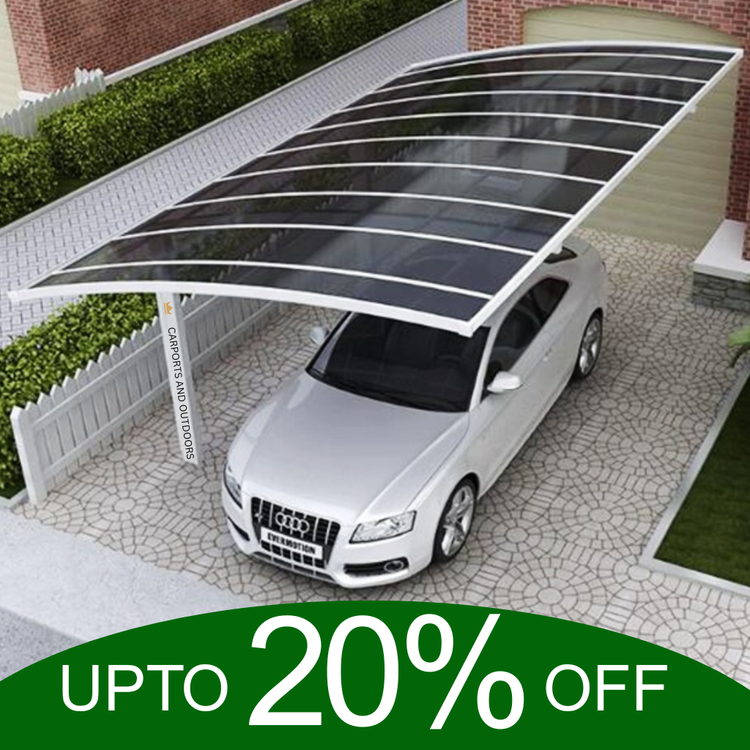

L Shape Carports and Pergola as name suggested have posts on only one side of the structure.

Standard Sizes with Solid Polycarbonate Sheets:

3.0m x 4.0m with 2 posts

3.0m x 5.0m with 2 posts

3.0m x 6.0m with 3 posts - Standard post 3.0m high.

Standard Sizes with Insulated Roof Panels:

3.0m x 4.0m with 2 posts

3.0m x 5.0m with 3 posts

3.0m x 6.0m with 3 posts - Standard post 3.0m high.

​These can be installed in both ways:

On Concrete Installation

Install the Steel Base on the concrete with Dynabolts provided

Cut short the post as per the required height, max 250cm

or

Buried in the ground installation

Dig the required size hole in the ground

Bury the Long Steel Base in the ground with suitable concrete mixer. Let them dry to atleast 24 hours before starting the Post & frame installation.

To achive more than 2.5m height, use long steel bases buried in the ground to install the posts

Post Positions

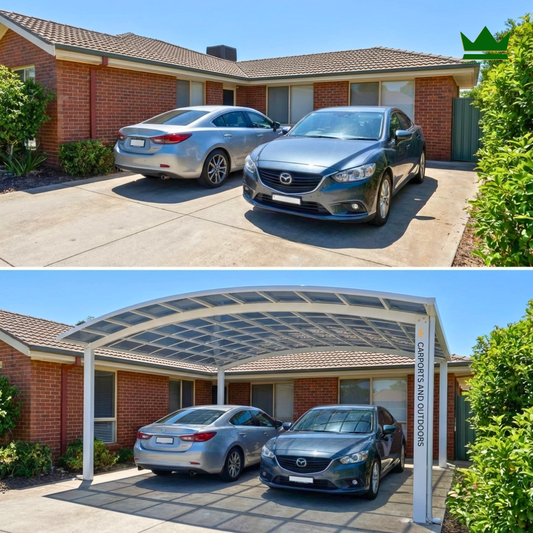

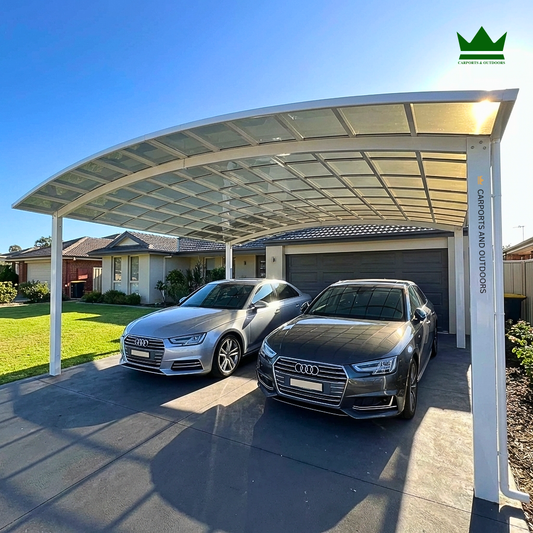

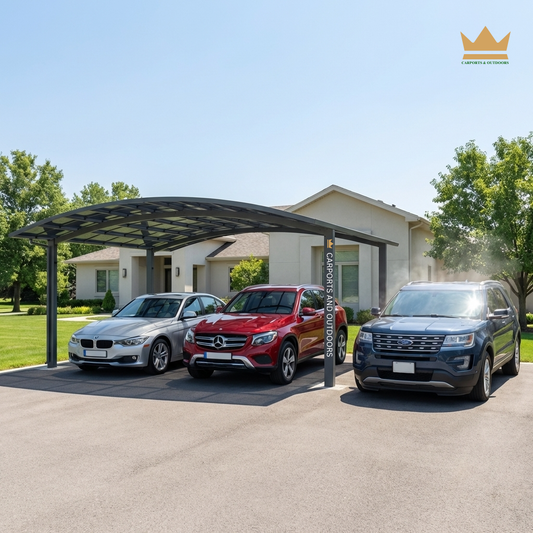

Posts position in L Shape & M Shape Carports and Pergolas are little flexible. You can move them littlebit if needed, keeping the gap between the posts

L Shape 3.0m x 4.0m: The gap should be between 300cm to 350cm

​L Shape 5.0m x 3.0m: The gap should be between 310cm to 360cm

​L Shape 5.0m x 3.0m: The gap should be between 240cm to 280cm



FAQs for Carports

Can the post height be reduced/adjusted?
Yes, standard posts height is 3.0m and customer can cut them short from the bottom end.

Can we install the carport on a slopy driveway?
Yes definitely. By cutting one post shorter than the other, the level of the slope can be managed to have desired roof level.

Are the gutter and drain pipe included in the kit?
Yes, gutter, drain pipe, connector and elbows are included in the kit.

Can installed post height be higher than 2.5m?
Yes, the Long Steel Bases can be buried in the ground, then 3.0m post can be slid over and secured with bolts & screws.
